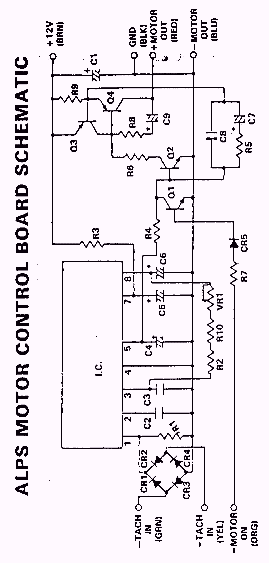

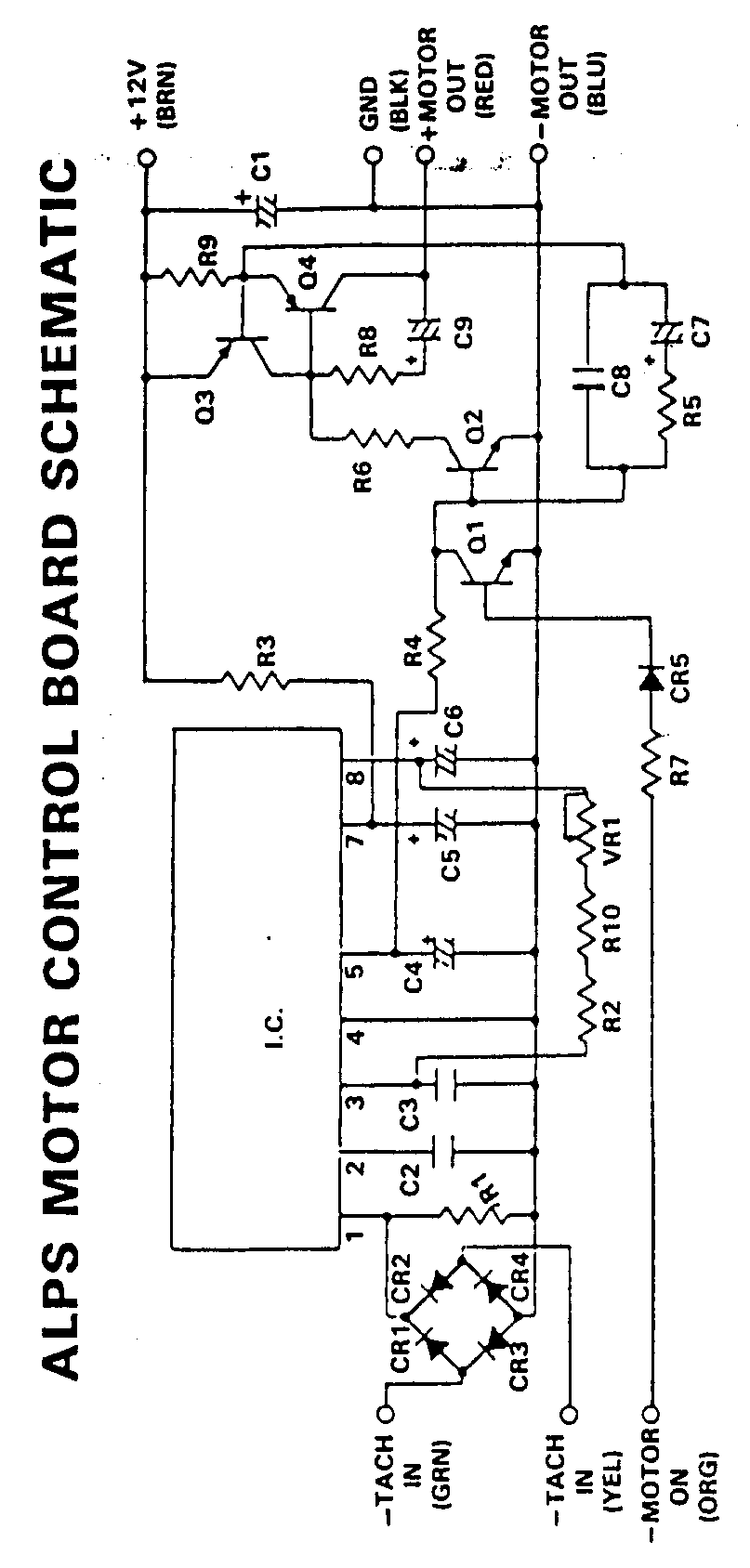

SYMBOL |
DESCRIPTION |
I.C. |
Sony CX-065B |
Q1 |
Transistor 2SC2785 |
Q2 |
Transistor 2SC2785 |
Q3 |
Transistor 2SA1175 |
Q4 |
Transistor B703-Q36E |
CR1,2,3,4,5 |
Diode IN4148 |
R1,7 |
Resistor, 1 kOhm, 1/4W |
R2 |
Resistor, 68 kOhm, 1/4W |
R3 |
Resistor, 220 Ohm, 1/4W |
R4 |
Resistor, 3.3 kOhm, 1/4W |
R5 |
Resistor, 2.7 kOhm, 1/4W |
R6 |
Resistor, 820 Ohm, 1/4W |
R8 |
Resistor, 150 Ohm, 1/4W |
R9 |
Resistor, 0.68 Ohm, 2W |
R10 |
Resistor, 5.1 kOhm, 1/8W |
VR1 |
Variable Resistor, 20 kOhm |
C1,5,6 |
Capacitor, Electrolytic, 10µF, 35V |
C2 |
Capacitor, 0.0047µF, 50V |
C3 |
Capacitor, 0.033µF, 50V |
C4,9 |
Capacitor, Tantalium, 0.47µF, 35V |
C7 |
Capacitor, Tantalium, 2.2µF, 16V |
C8 |
Capacitor, 0.068µF, 50V |
|
